Sunstream SunLift Mini

The Sunstream SunLift Mini is for personal water crafts (PWC) such as a Jet-Ski, Sea Doo or Wave Runner. Available as a single lift or a side-by-side duo. You can even upgrade a single lift into a dual. Weight capacities should be determined considering the full weight including passengers, cargo and fuel.

Additional parts are available to accommodate any location for a perfect install.

There is a lot of information and options to choose from, but don't be overwhelmed. If you need any help, just give us a call. Browse below to familiarize yourself with the lift and how it works. Then just figure out how you want to set your lift up, do some research, take some measurements and you're ready to order!

Lift Purchase Includes:
• Lift, Brackets and Hardware (legs are sold separately to suit)
• Hydraulic Cylinders and Hoses (18 feet long)
• Hydraulic PowerPack & Bluetooth Remote YouTube Tutorial

What do I NEED to buy for Install?
• A Battery
• A Charger
• 4 Legs
Since each docking situation is different, all installation parts are sold separately. MOST installations will just need 4 legs, a battery and a charging option (Solar or AC). Then you can look over all the extra customizations available below.

Before Purchase:
• Triple check your boat specs, dock and water depth measurements
• Research your annual water level fluctuations if necessary
• Plan your transport/shipping
• Determine the necessary install parts
• If you have ANY questions, just give us a call!

Step 1: Select your Lift The max weight capacity should be determined considering the full weight including all passengers, cargo and fuel.
Lift Model:	Specs:	Lift PowerPack:	Lift Range:	Dimensions:

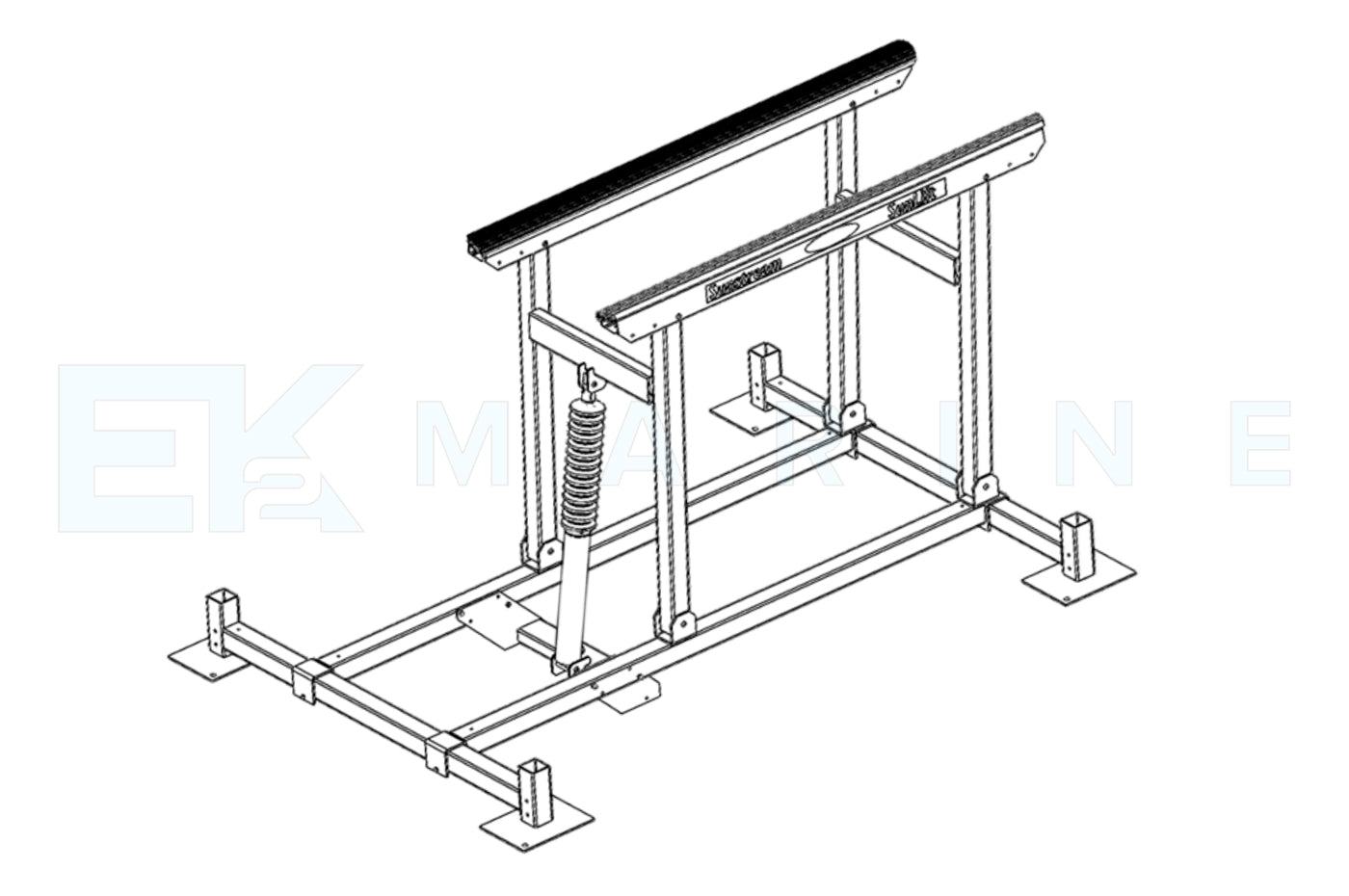

SL2006AR2 (Single)	2,000 LB Capacity 6' Bunks	PP-PSM12	3.8-5.7 feet • Standard Range 3.8' • Up to 5.7' with an AR Kit
SL2008AR2 (Single)	2,000 LB Capacity 8' Bunks	PP-PSM12	3.8-5.7 feet • Standard Range 3.8' • Up to 5.7' with an AR Kit

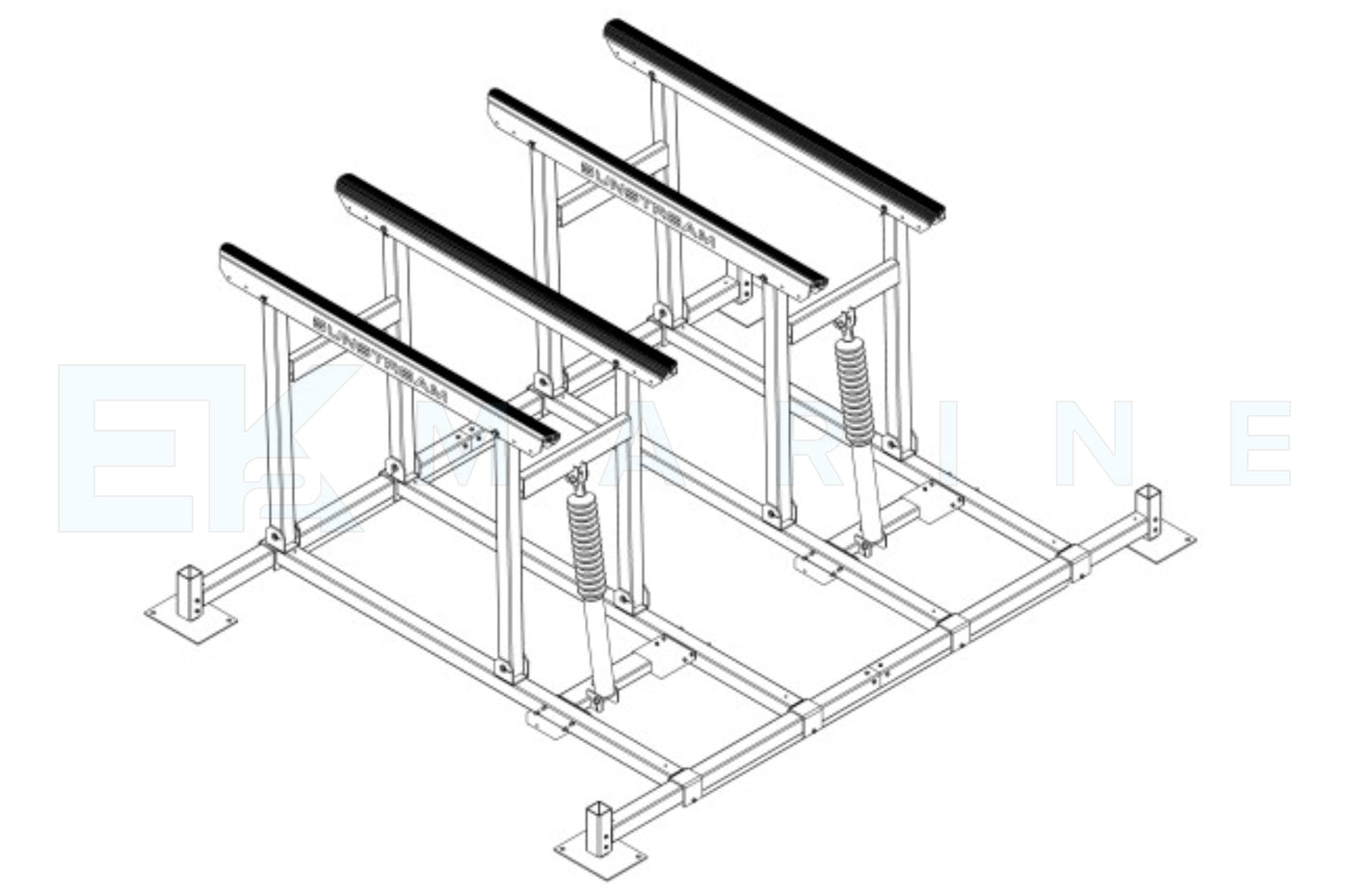

SL2006AR2D2 (Dual)	2,000 LB Capacity 6' Bunks	PP-PSM12	3.8-5.7 feet • Standard Range 3.8' • Up to 5.7' with an AR Kit
SL2008AR2D2 (Dual)	2,000 LB Capacity 8' Bunks	PP-PSM12	3.8-5.7 feet • Standard Range 3.8' • Up to 5.7' with an AR Kit

Step 2: Add your Battery & Charger (Required for Install) You need to purchase the Optima battery to power the hydraulic lift pump. Now, do you want Solar or AC charging? You can choose the AC Charging Kit which uses a direct power line to charge the battery and does not need to rely on the sun. Or, the Solar Charging Kit allows your battery to be charged over time by the sun and does not require AC power on the dock. If you're in a location that gets a LOT of sun, a Solar Regulator is recommended with the Solar Charger. All parts are sold separately.
9014-045	Optima Yellow Top Battery
LA-CA12	12V AC Charging Kit (Requires an outlet)
LA-CS12W	12V Solar Charging Kit (Requires sunlight)
LA-CC5	Solar Regulator (optional for high solar areas)

Step 3: Add your Legs (Required for Install) Four legs are required for install - sold individually. A little research and measuring will be needed at your dock. The legs are at all 4 corners at the base of the lift and should be selected depending on how deep the water is at your dock. 24' legs are not typically used - if you have water that deep, you will also need Deep Water Braces. Click on any part number to read more about legs. Another note - one 16' leg can be cut into four 4' legs.
SA-LR2	2 foot Leg		SA-LR12	12 foot Leg
SA-LR4	4 foot Leg		SA-LR16	16 foot Leg
SA-LR6	6 foot Leg		SA-LR24	24 foot Leg
SA-LR8	8 foot Leg

Step 4: Customize your Install Below you'll find the Adjustment Range (AR) Kits which can change the overall height of the lift, hydraulic hose extensions and PowerPack shelves can be added if you need your PowerPack in a unique location. A SwiftShield or Sunstream Canopy will keep your boat fully covered and protected from the elements. If you have extremely low water at your dock, take a look at the Shallow Water SLX Lifts.
Guides, Stops, AR Kits, Shelves:			Hose Extensions, Zinc, Brackets:
SA-G2AB	Guide-Ons		SA-HX51	5' Hose Extensions
SA-BS2	Mini Bow Stop		SA-HX151	15' Hose Extensions
SA-EX2	Adjustment Range AR Kit 24"		SA-HX301	30' Hose Extensions
SA-PSL1B	Leg Mount PowerPack Shelf		SA-ZN2B	Zinc Kit
SA-PSD1	Dock Mount PowerPack Shelf		SA-CW1B	Catwalk Brackets
Creating Dual Lifts from Existing Lift (Add a Mini to a one or two cylinder SunLift):
SL2006AR2NP	Fits SL2006AR2 Mini Frame with 6' Bunks (powerpack not included)
SL2008AR2NP	Fits SL2008AR2 Mini Frame with 6' Bunks (powerpack not included)
SA-DP2	Dual SunLift Powerpack with Hydraulic Selector & 2 RC's
SA-DS2	Dual Lift Selector with 1 RC
See All Mini Lift Accessories & Maintenance Parts:

The Sunlift Mini:
Perfect for small crafts like a Jet-Ski, Sea Doo or Wave Runner stored in fresh or salt water with fluctuations up to four feet during boating season. Easy to operate for one person and launches smoothly and safely in just 15 seconds. The solar charging option gives you an automated lift even without dock power and the Dual Mini SunLift bundle enables two crafts to be lifted and launched side by side using a single PowerPack. The SunLift Mini offers remote or Wi-Fi controls with solar or AC charging in a waterproof, lockable fiberglass PowerPack box.

• Single or dual lifts
• Launches in just 15 seconds
• Salt or fresh water
• Waterproof remote or Wi-Fi control
• Solar or AC charging
• Lockable fiberglass PowerPack box

Superior Hydraulics:
Sunstream's patented cylinder boot keeps the stainless shaft and hydraulic fluid clean, while protecting the cylinder seals. The pressure balanced pump is 20% more efficient than typical fixed gear pumps, saving energy and increasing speed.

• Environmentally friendly water soluble hydraulic fluid
• Patented safety and protection

Modern Frame:
The SunLift Mini has a corrosion-resistant frame constructed with 1/4" thick aluminum plate with stainless steel hardware that is worthy of displaying your craft.

• Single or dual
• Corrosion-resistant aluminum
• Stainless steel hardware
• Beautiful display

SuperBunks:
The durable, rubber-topped SuperBunks offer superior protection and support for your hull.

• Durable rubber-topped hull protection

Frame Adjustability:
The SunLift Mini offers lateral adjustability by the lower cross beam to minimize the distance of your craft to your dock for safe and easy boarding.

• Lateral adjustments for easy dock boarding

Installation:
You can have the lift shipped to you and install on your own or schedule an EK2 Marine tech to install it for you.

• Sunlift Mini Installation PDF
• Frequently Asked Questions

Bluetooth & App:
Sunstream's optional Bluetooth transmitter and smartphone app give you the power to lift your boat with your phone! It also gives important lift diagnostics to prevent a problem from becoming a problem. Bluetooth technology has a consistent range and is more responsive. Built-in security features protect your boat and 'depressurize' is ideal for seasonal users.
