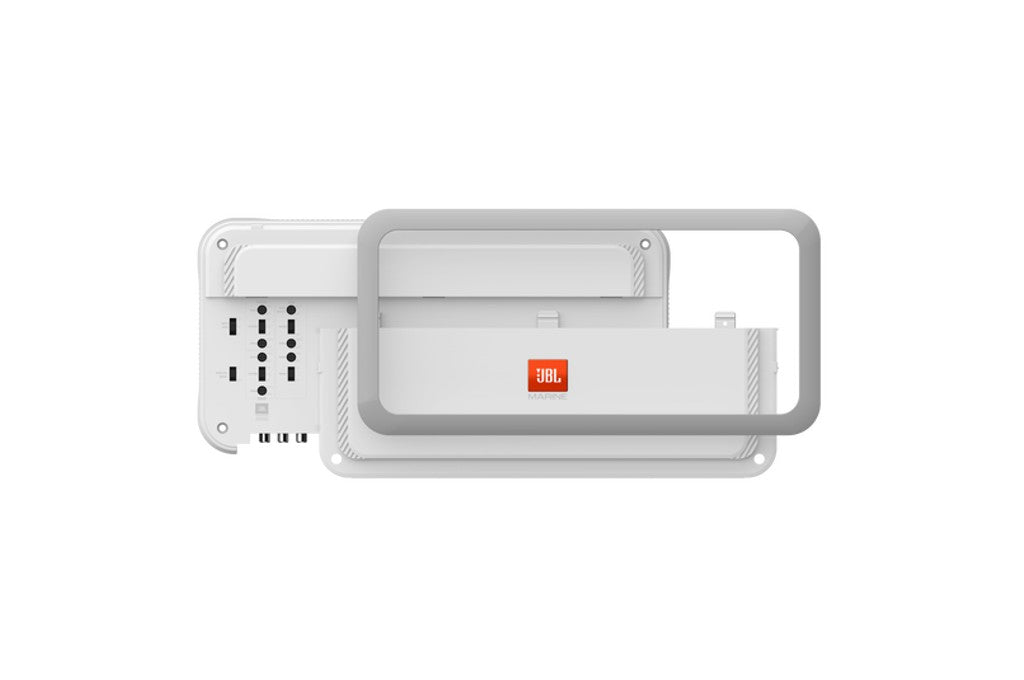

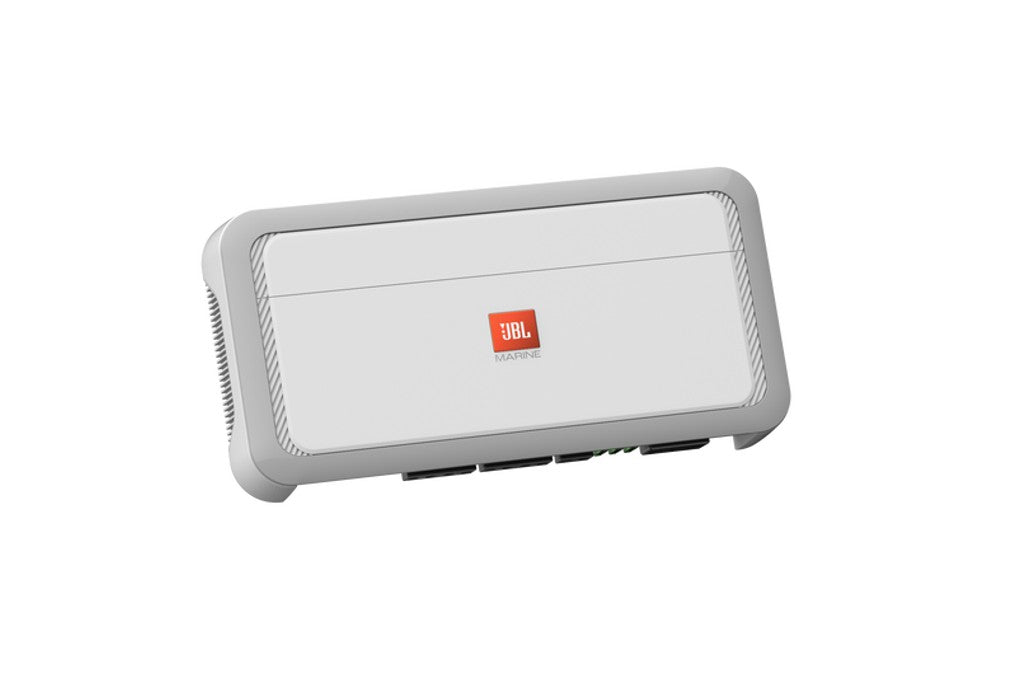

JBL Marine A5055 Compact Amplifier
JBL Marine A5055 Compact Amplifier
Part Number: SKU:JBL-JBLMA5055AM
The JBL Marine A5055 Compact Amplifier is a five-channel marine amplifier designed for boat owners who want serious power in a tight space. This Marine A5055 delivers 760 watts RMS of Class AB+D power with flexible connectivity—both high and low-level inputs work with factory or aftermarket stereos. Its compact low-profile chassis fits easily in space-limited installations, while variable crossovers, bass boost, and phase control let you dial in your system perfectly for the water.
Specs & Details:
| Channels | 5 |
| Power Output (4 ohms) | 50W RMS x 4 + 320W RMS x 1 |
| Power Output (2 ohms) | 75W RMS x 4 + 500W RMS x 1 |
| Power Output (Bridged) | 100W RMS x 2 at 4 ohms + 500W RMS x 1 at 2 ohms |
| Total RMS Power | 760 watts |
| Amplifier Class | Class AB+D |
| High/Low-Pass Filter (Front/Rear) | Variable, 32–320 Hz, 12 dB/octave |
| Low-Pass Filter (Subwoofer) | 32–320 Hz, 12 dB/octave |
| Bass Boost (Subwoofer) | 0–12 dB at 45 Hz |
| Phase Switch | 0° / 180° |
| Input Sensitivity (Low-Level) | 200mVrms – 4Vrms |
| Input Sensitivity (High-Level) | 1Vrms – 22Vrms |
| Fuse Rating | 30A x 3 |
| Recommended Power/Ground Wire | 4-gauge |
| Dimensions (W x H x D) | 360mm x 51.3mm x 180mm (14-3/16" x 2-1/16" x 7-1/8") |
| What's in the Box | Marine A5055 amplifier, 4 bare wire-to-RCA adapters, six 30A ATO fuses (3 installed, 3 spare), remote bass control module, 16.5' remote control cable (RJ-25), 2 self-tapping screws (M3 x 15mm), 4 mounting screws (M4 x 53mm), owner's manual, two JBL stickers, 1 logo badge |
Features & Benefits:
• Compact low-profile chassis with small overall footprint to fit in space-limited installations
• Variable electronic crossovers and bass boost circuits for precise system tuning and performance
• Input Level Control adjusts sensitivity between 200mVrms–4Vrms (low-level) or 1Vrms–22Vrms (high-level)
• Phase Switch changes input phase to inverted or non-inverted, especially useful for the subwoofer channel
• Class AB+D amplifier technology delivers 760 watts RMS with high output and minimum current draw
• High and low level (speaker-level and preamp) inputs for compatibility with aftermarket and factory marine stereos
• Balanced Differential Inputs ensure low noise and distortion, reducing susceptibility to engine noise
• Full on-board protection against shorts, high temperature, overvoltage, and undervoltage with LED indicator
• Includes RBC wired remote for convenient volume adjustment from the driver's seat
• Selectable Turn-on mode (DC/REM) for compatibility with low- or high-level signals and battery protection
▸Part Number(click to expand)
| Part Number |
| JBLMA5055AM |
The JBL Marine A5055 Compact Amplifier is a five-channel marine amplifier designed for boat owners who want serious power in a tight space. This Marine A5055 delivers 760 watts RMS of Class AB+D power with flexible connectivity—both high and low-level inputs work with factory or aftermarket stereos. Its compact low-profile chassis fits easily in space-limited installations, while variable crossovers, bass boost, and phase control let you dial in your system perfectly for the water.
Specs & Details:
| Channels | 5 |
| Power Output (4 ohms) | 50W RMS x 4 + 320W RMS x 1 |
| Power Output (2 ohms) | 75W RMS x 4 + 500W RMS x 1 |
| Power Output (Bridged) | 100W RMS x 2 at 4 ohms + 500W RMS x 1 at 2 ohms |
| Total RMS Power | 760 watts |
| Amplifier Class | Class AB+D |
| High/Low-Pass Filter (Front/Rear) | Variable, 32–320 Hz, 12 dB/octave |
| Low-Pass Filter (Subwoofer) | 32–320 Hz, 12 dB/octave |
| Bass Boost (Subwoofer) | 0–12 dB at 45 Hz |
| Phase Switch | 0° / 180° |
| Input Sensitivity (Low-Level) | 200mVrms – 4Vrms |
| Input Sensitivity (High-Level) | 1Vrms – 22Vrms |
| Fuse Rating | 30A x 3 |
| Recommended Power/Ground Wire | 4-gauge |
| Dimensions (W x H x D) | 360mm x 51.3mm x 180mm (14-3/16" x 2-1/16" x 7-1/8") |
| What's in the Box | Marine A5055 amplifier, 4 bare wire-to-RCA adapters, six 30A ATO fuses (3 installed, 3 spare), remote bass control module, 16.5' remote control cable (RJ-25), 2 self-tapping screws (M3 x 15mm), 4 mounting screws (M4 x 53mm), owner's manual, two JBL stickers, 1 logo badge |
Features & Benefits:
• Compact low-profile chassis with small overall footprint to fit in space-limited installations
• Variable electronic crossovers and bass boost circuits for precise system tuning and performance
• Input Level Control adjusts sensitivity between 200mVrms–4Vrms (low-level) or 1Vrms–22Vrms (high-level)
• Phase Switch changes input phase to inverted or non-inverted, especially useful for the subwoofer channel
• Class AB+D amplifier technology delivers 760 watts RMS with high output and minimum current draw
• High and low level (speaker-level and preamp) inputs for compatibility with aftermarket and factory marine stereos
• Balanced Differential Inputs ensure low noise and distortion, reducing susceptibility to engine noise
• Full on-board protection against shorts, high temperature, overvoltage, and undervoltage with LED indicator
• Includes RBC wired remote for convenient volume adjustment from the driver's seat
• Selectable Turn-on mode (DC/REM) for compatibility with low- or high-level signals and battery protection
▸Part Number(click to expand)
| Part Number |
| JBLMA5055AM |
