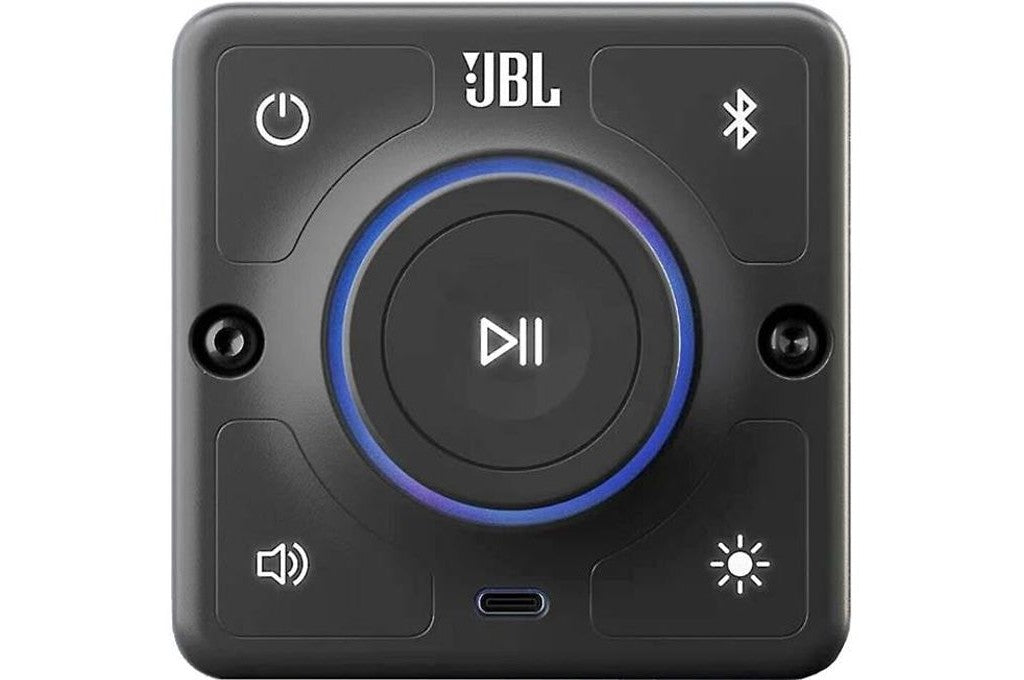

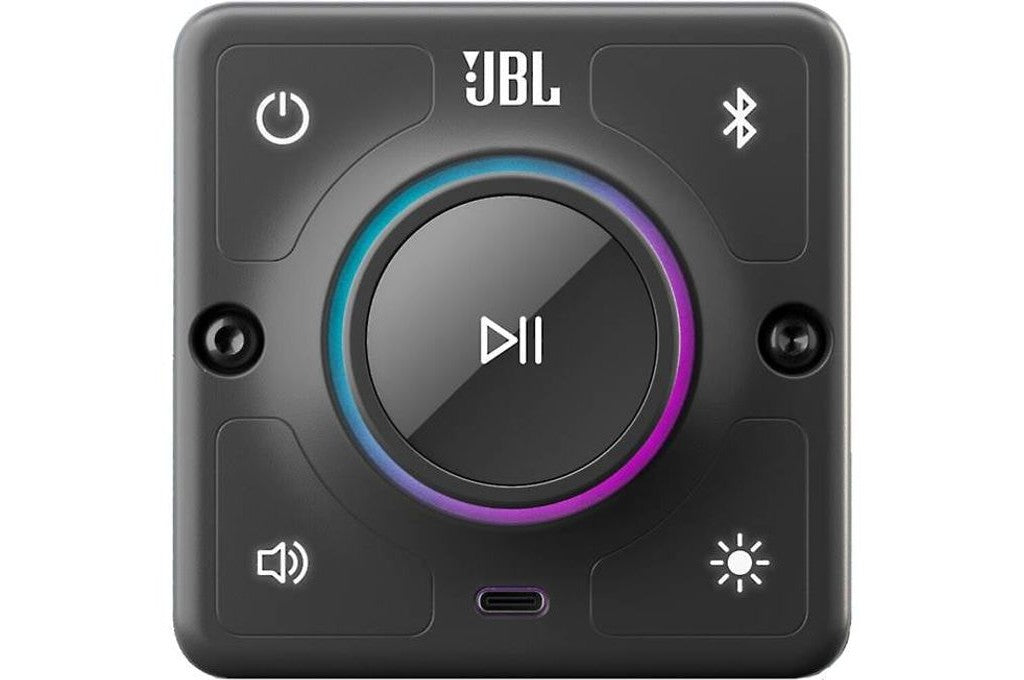

JBL 4 Channel Marine Head Unit
JBL 4 Channel Marine Head Unit
Part Number: SKU:JBL-JBL-AURA-BT-M
The JBL 4 Channel Marine Head Unit is a compact Bluetooth-enabled marine head unit designed for boats, ATVs, UTVs, and RVs where space is tight. Built with an IPX6 water-resistant rating and dustproof front faceplate, this stereo fits standard 2-5/8" gauge openings and delivers 18 watts across four channels through its integrated amplifier. You'll stream music wirelessly via Bluetooth 5.3 from up to 30 feet away, control playback from your phone, and customize your audio setup with dual-zone speaker outputs and three backlit button modes—all without needing extra installation gear.
Specs & Details:
| RMS Power (Manufacturer) | 18 watts x 4 channels |
| Bluetooth Version | 5.3 |
| Bluetooth Profiles | A2DP, AVRCP, SSP |
| Bluetooth Range | Approximately 30 feet |
| Water Resistance Rating | IPX6 |
| USB Input | Front USB-C |
| USB Port Power | 2.1A (10W) |
| Supported File Types | MP3 |
| USB Storage Capacity | Up to 64GB |
| Preamp Outputs | None |
| AUX Input | No |
| Speaker Zones | 2 (Front/Rear) |
| Cutout Diameter | 2.625" |
| Cutout Depth | 1.5" |
| Front Panel Width | 3.6875" |
| Front Panel Height | 3.6875" |
| Front Panel Depth | 1.25" |
| Screw Hole Spacing | 3.0" (W) x 1.25" (D) |
| Wiring Harness | 12-pin |
| Key Button Color | White |
| Parts Warranty | 1 Year |
| Labor Warranty | 1 Year |
Features & Benefits:
• Built-in amplifier delivering 18 watts x 4 channels
• IPX6-rated for dustproof and water-resistance (front faceplate)
• Built-in Bluetooth 5.3 for wireless music streaming (A2DP) and playback control (AVRCP)
• Bluetooth range of approximately 30 feet
• Dual zone speaker output (Front/Rear) with shared or independent zone control
• Backlit buttons and volume knob ring illumination with three light modes
• Front-panel USB-C port supporting MP3 playback (up to 64GB) and 10W/2.1A device charging
• Big, easy-to-use buttons with 3-way rotary knob and 4 push-buttons
• Non-volatile memory retains settings during extended storage
• Fits into a 2-5/8" gauge opening (smaller than standard 3" gauge-style radios)
• Does not play CDs; no preamp outputs; no display
• 1-year parts and labor warranty
